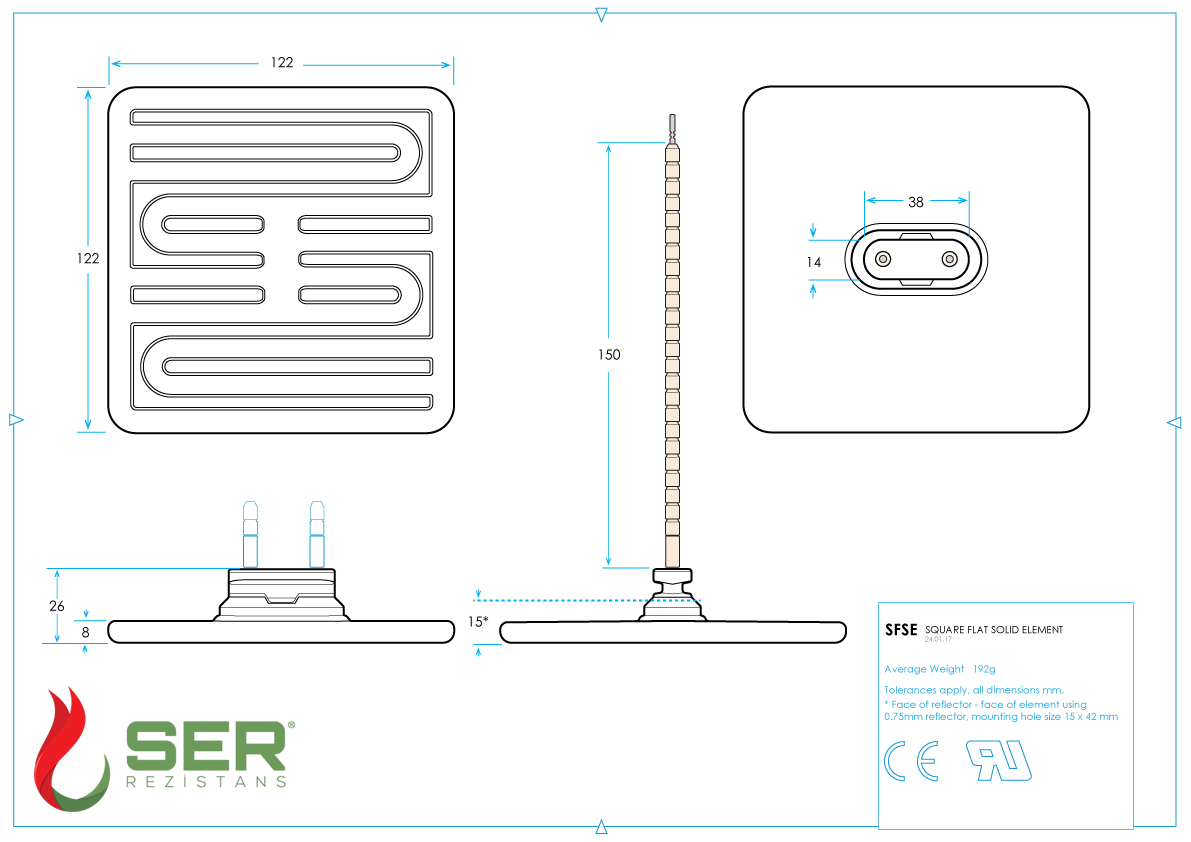

Wattage Options 250 - 1000 Watts Dimensions 122 x 122 x 26mm
Fe-Cr-Al resistance wire
V: Standard 230 Volts (other voltage values are manufactured upon order)
Effective Wavelength Range: 2-10 microns
Average Operation Time - Up to 20,000 hours depending on conditions.
Recommended application distance - 100 mm to 200 mm
100mm ceramic bead insulated feeding cable
| SFSE Technical Details | 250W | 300W | 400W | 500W | 650W | 750W | 1000W |

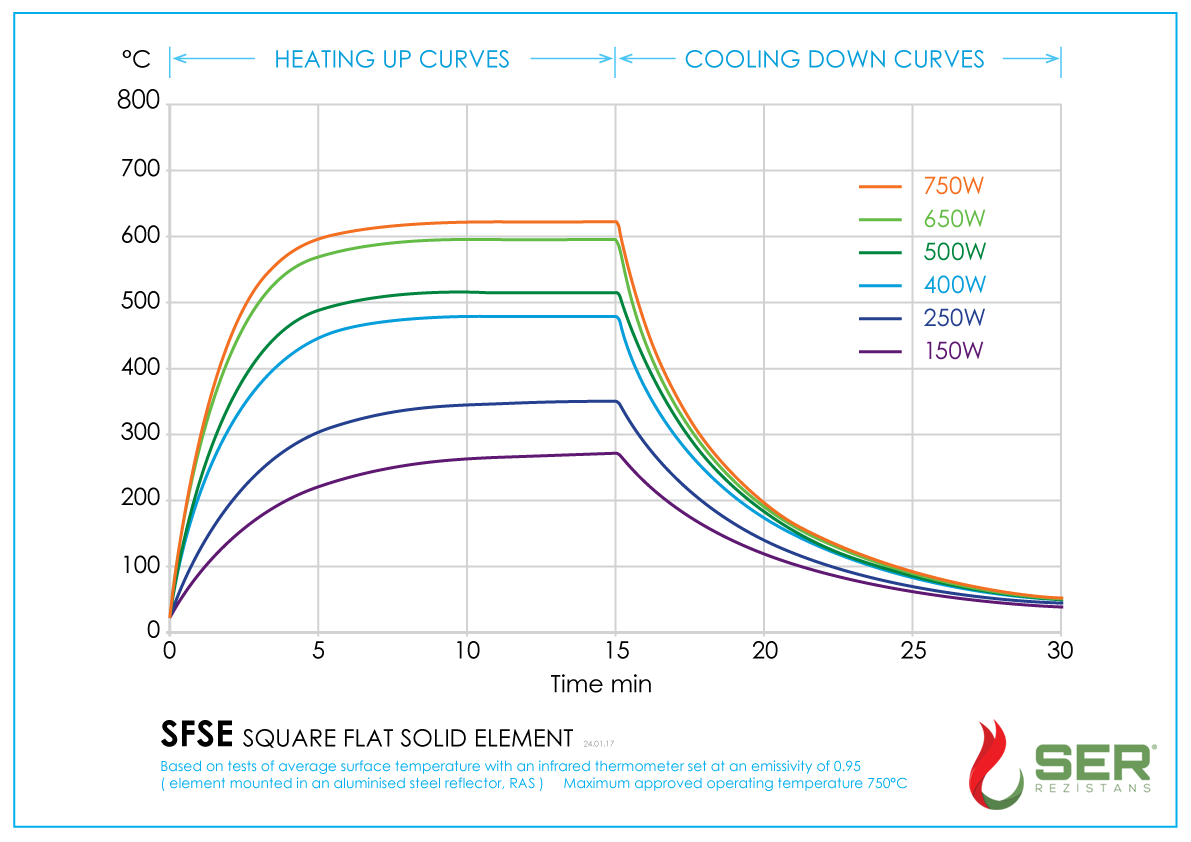

| Average Surface Heat°C |
| 480 | 515 | 561 | 596 | 700 |
|
| Max. surface heat°C | 750 | 750 | 750 | 750 | 750 | 750 | 750 |
| Max. power density (kW/m²) | 15 | 24 | 30 | 36 | 39 | 60 | 15 |
| Average Weight | 192g | ||||||
| Dimensions | 122 x 122 x 26 mm | ||||||
| Effective Wavelength | 2 - 10 µm | ||||||
